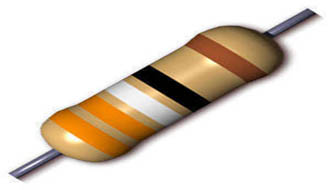

CFR

The WC Series Carbon Film Resistors are manufactured using mechanised high vacuum carbonising plants.This ensure a stable resistive film.The resistors are insulated with layers of light brown lacquer.The WC series offer a wide range of power rating (0.125W,0.25W,0.4W,0.5W,1W,2W, & 3W) with a tolerance of ± 5%.

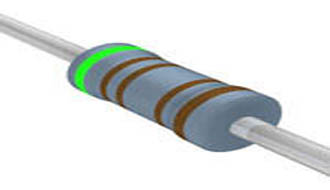

MFR

The WM series Metal Film Resistors are manufactured using the latest Magnetron Vacuum Sputtering System. This ensures a very stable resistive medium having a very low temperature coefficient. The resistors are insulated with layers of light blue lacquer. The WM series offer a wide range of power rating (0.125W,0.25W,0.40W,0.50W,1W,2W, & 3W) with a tolerance of(0.1%,0.5%, 1%,2%, 5%) and TCRs (15, 25,50 & 100 ppm).

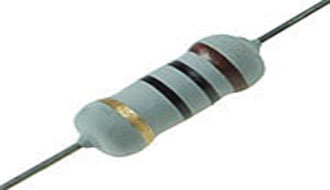

MOR

The WMO series Metal Oxide Film Resistors are manufactured using the latest technology to ensure a very stable resistive medium. The resistors are insulated with layers of flame proof epoxy. The WMO series offer a wide range of power rating (0.25W, 0.50W, 1W, 2W & 3W) having tolerance ranges of ±1 % & ±5 %.

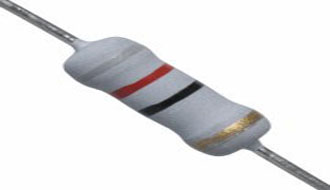

WWR

The WW series Wirewound Resistors are manufactured using the best quality raw materials, enabling us to offer wirewound resistors of superior quality to cover a wide range of application in the electronics field. The wirewound resistors are coated with SILICONE EPOXY with axial lead wire. The ohmic value is colour coded with 3 bands plus a tolerance band. An additional black band indicates that the resistor is wire wound.
